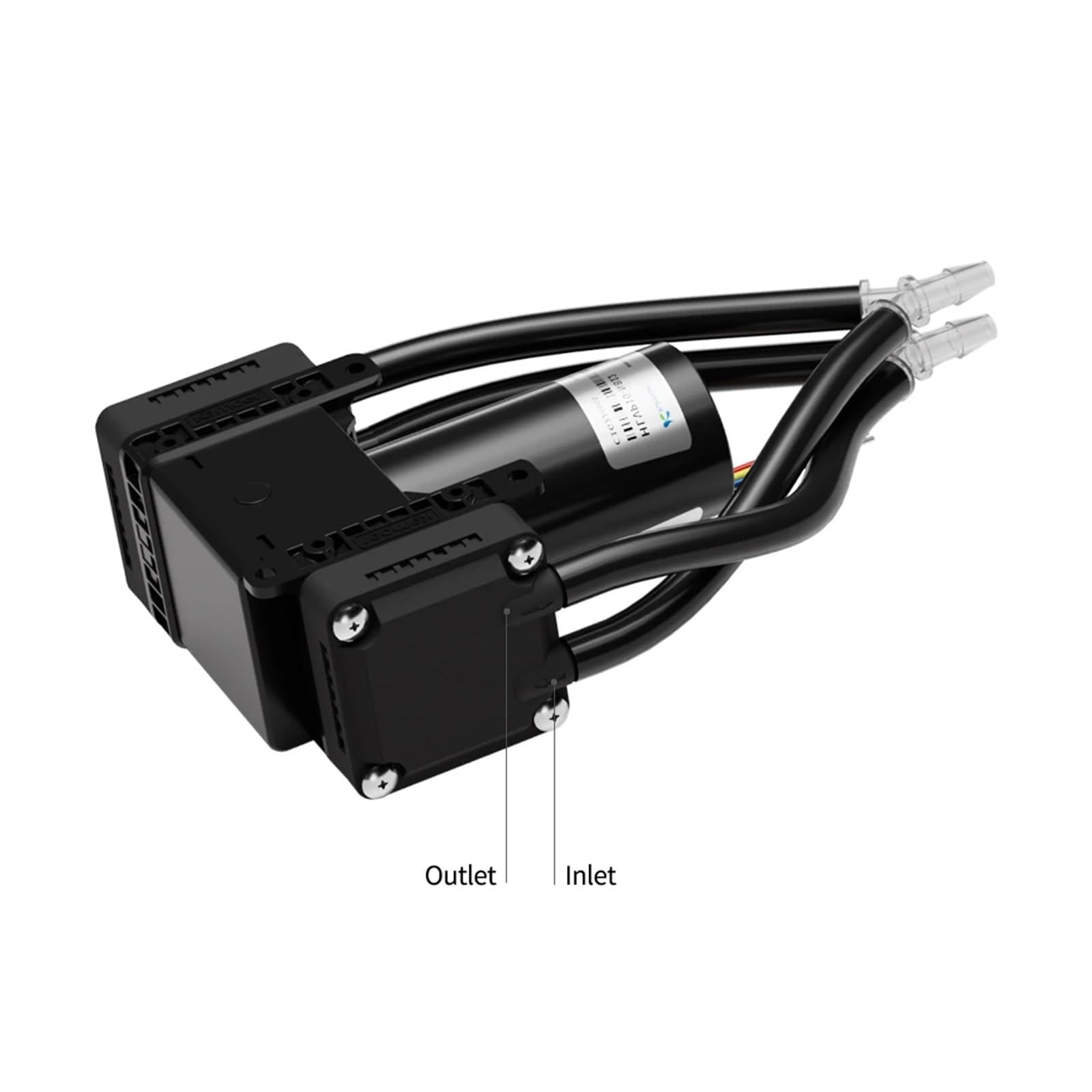

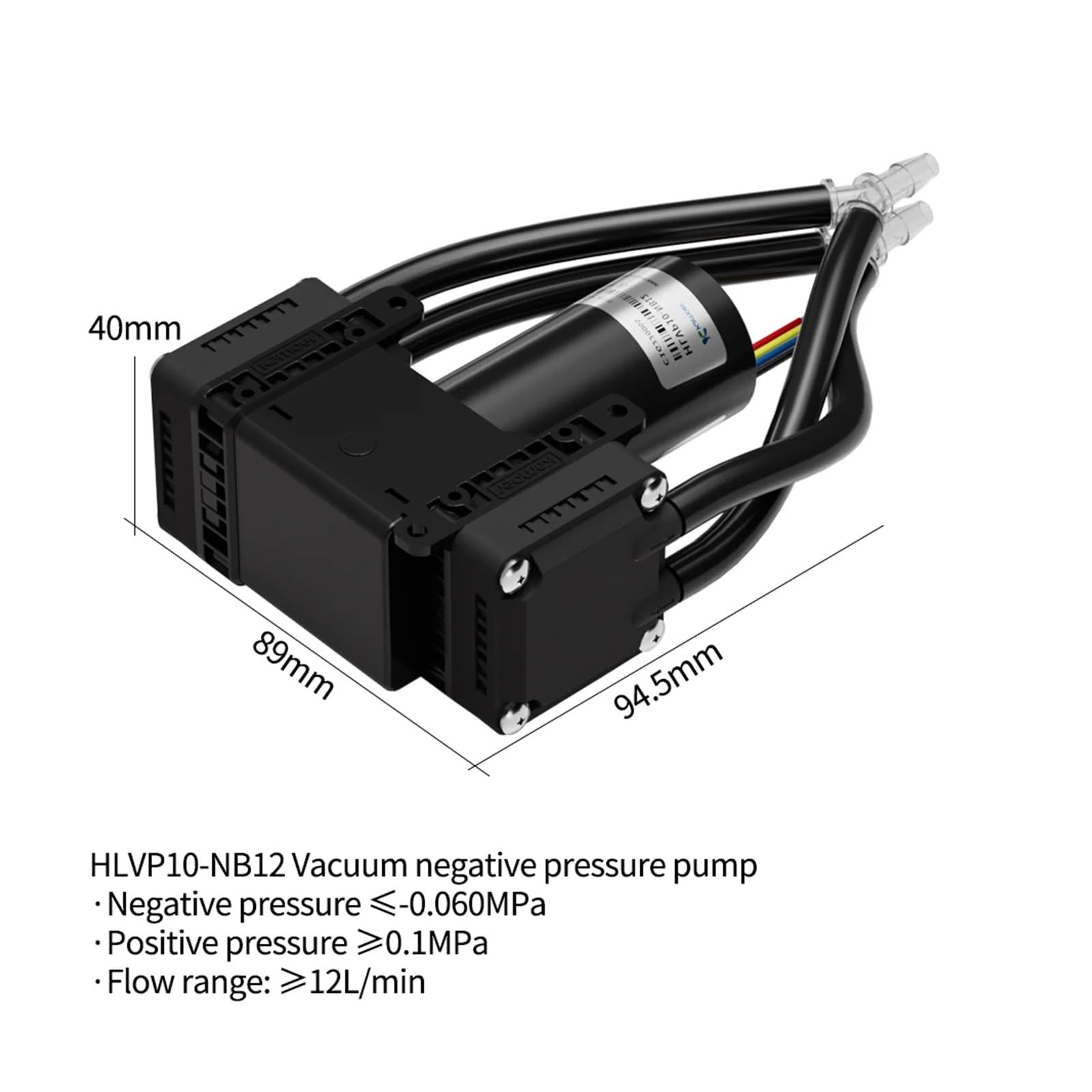

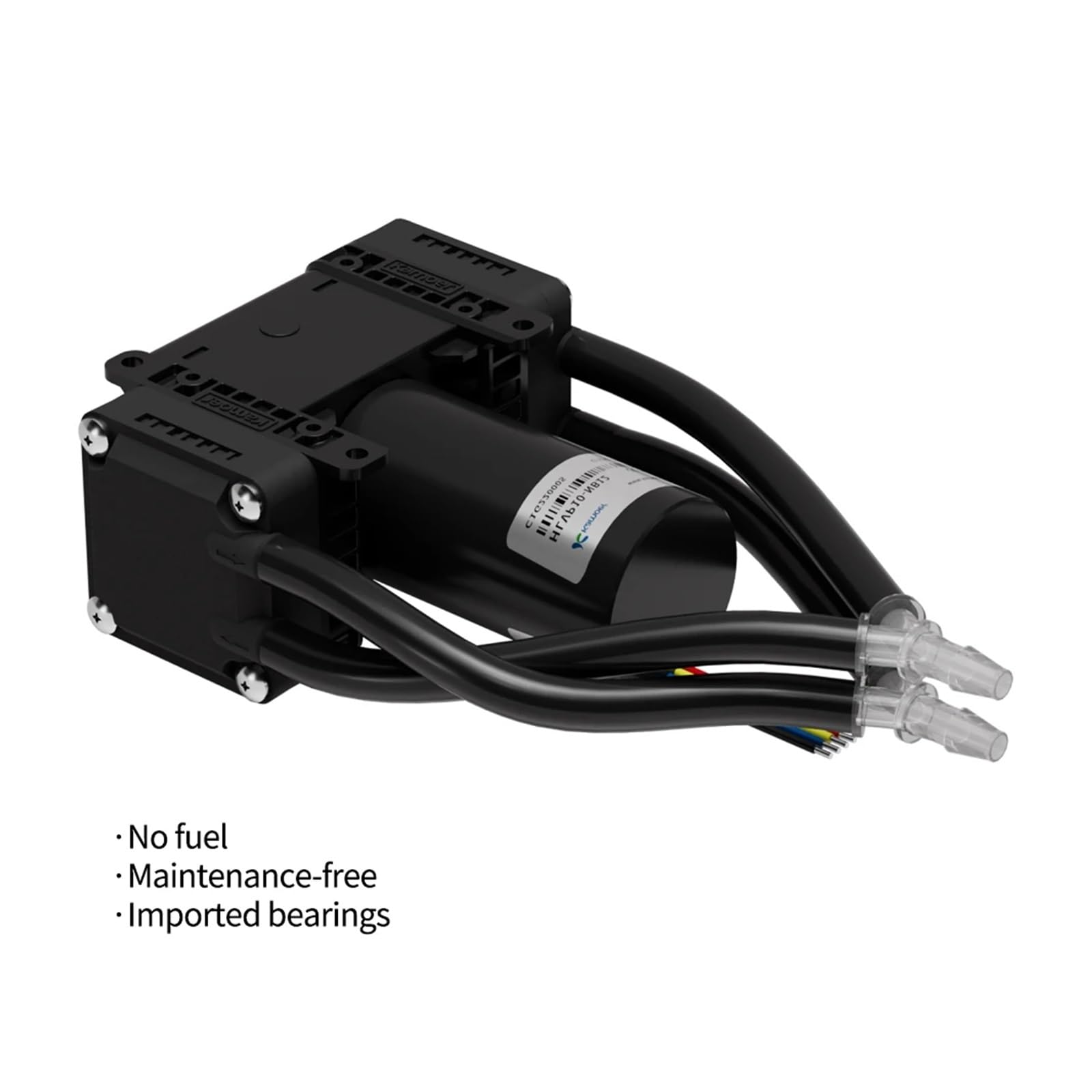

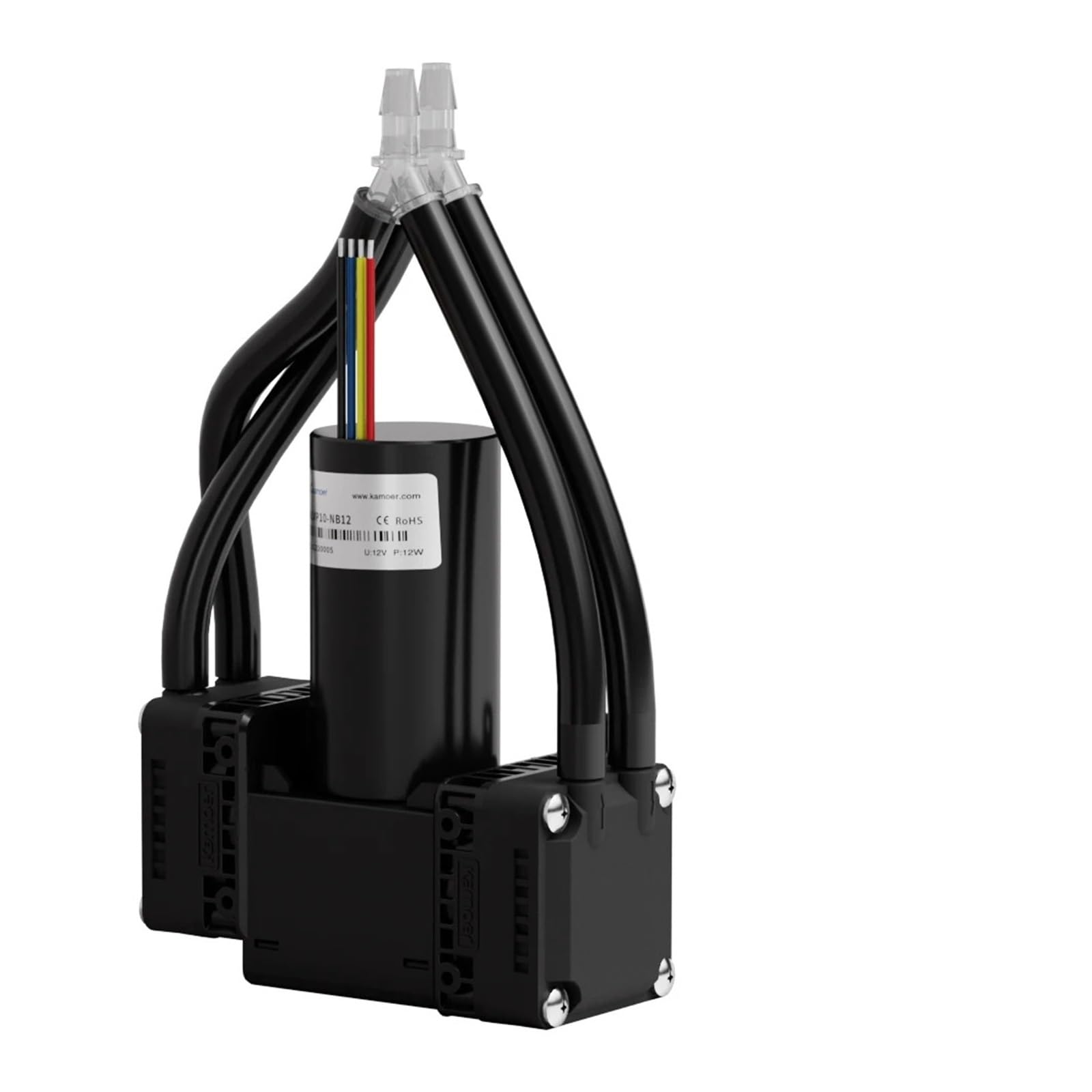

12L/min HLVP10 Diaphragm Vacuum Pump 12V 24V BLDC Motor Air Pump In Parallel Negative 0.0 6Mpa Suction Pump(HLVP10-E-B12(12V))
zł287.50
zł618.47
Zwrot bez ryzyka w 30 dni i gwarancja zwrotu pieniędzy
Rozmiar
Dodano do koszyka.

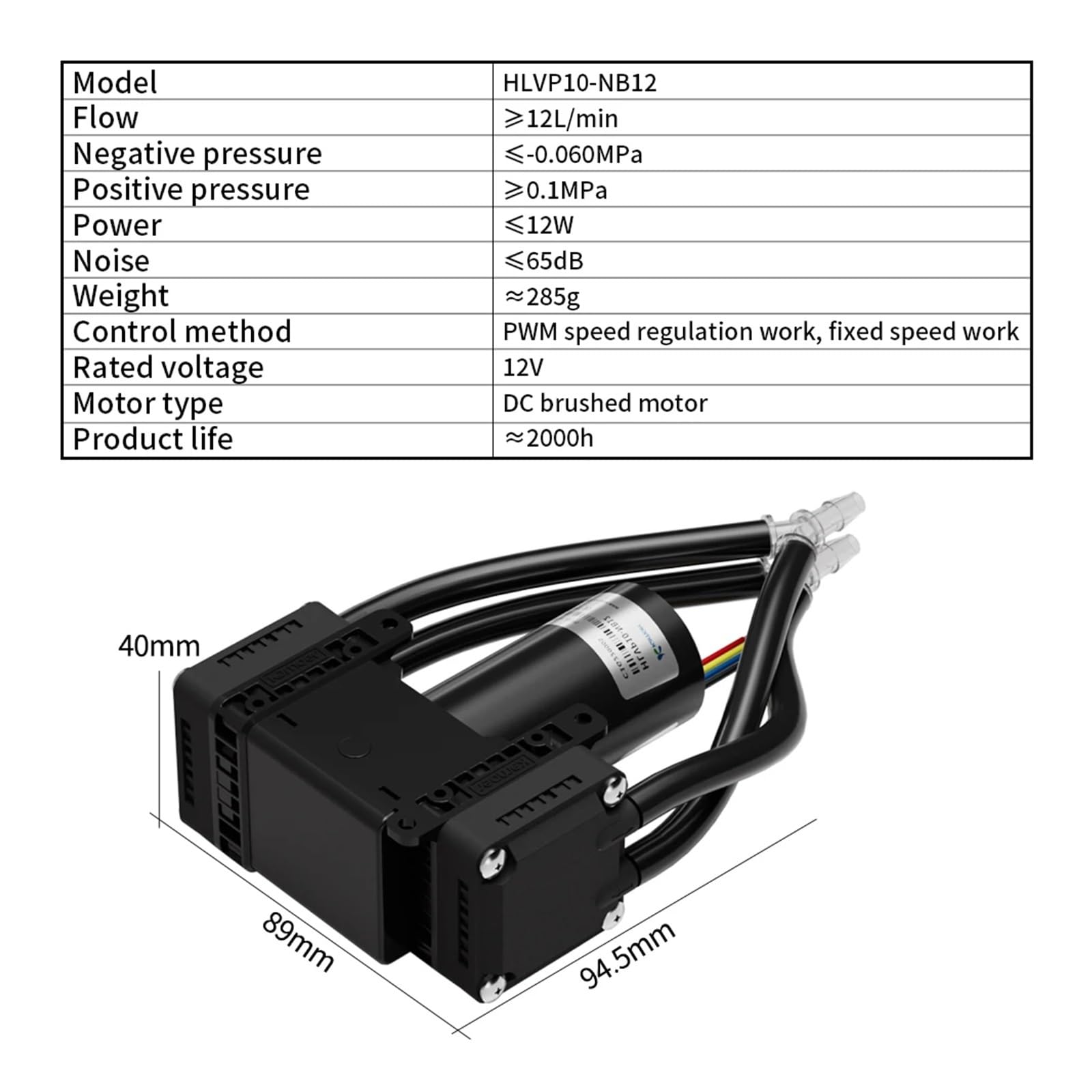

Specyfikacja produktu
- PWM speed regulation: 10KHZ-30KHZ, amplitude: 5V, control ratio 0-10% without turning, 11%-100% speed regulation range.
- Analog voltage speed regulation: voltage 0-5V, 0-0.5V motor does not rotate, 0.6-4.5V speed regulation range.
- The speed feedback of the yellow line is connected to the oscilloscope probe or the host computer. 1 pulse/rev Speed (rev/min)=FG signal*60
- Full speed operation: connect the positive pole to the red wire and the blue wire; connect the negative pole to the black wire Left is Full speed operation;Right is PWM.
